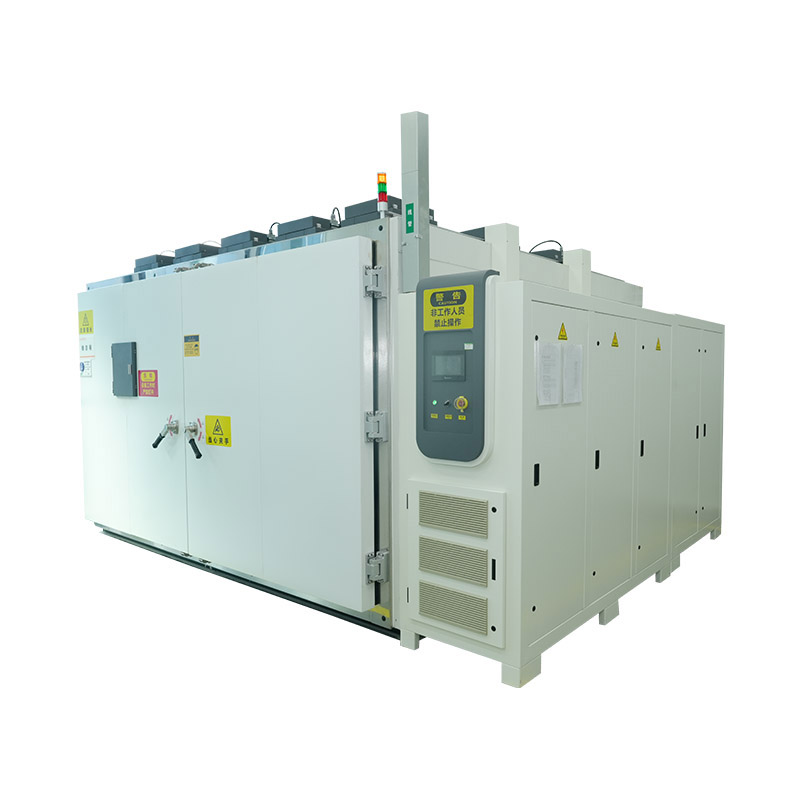

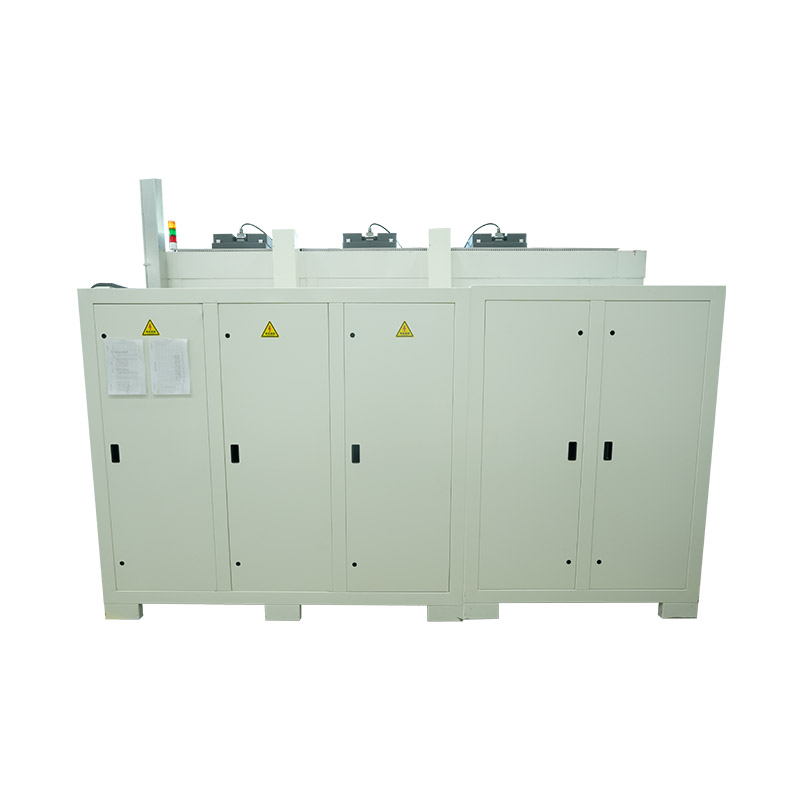

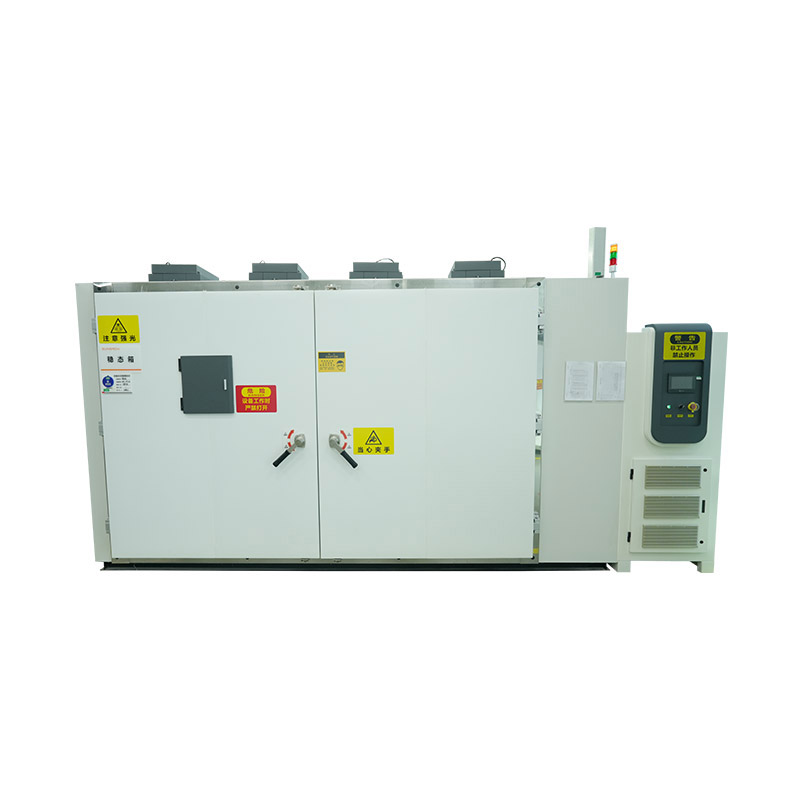

Steady-state Test Chmaber

Steady-state Test Chmaber

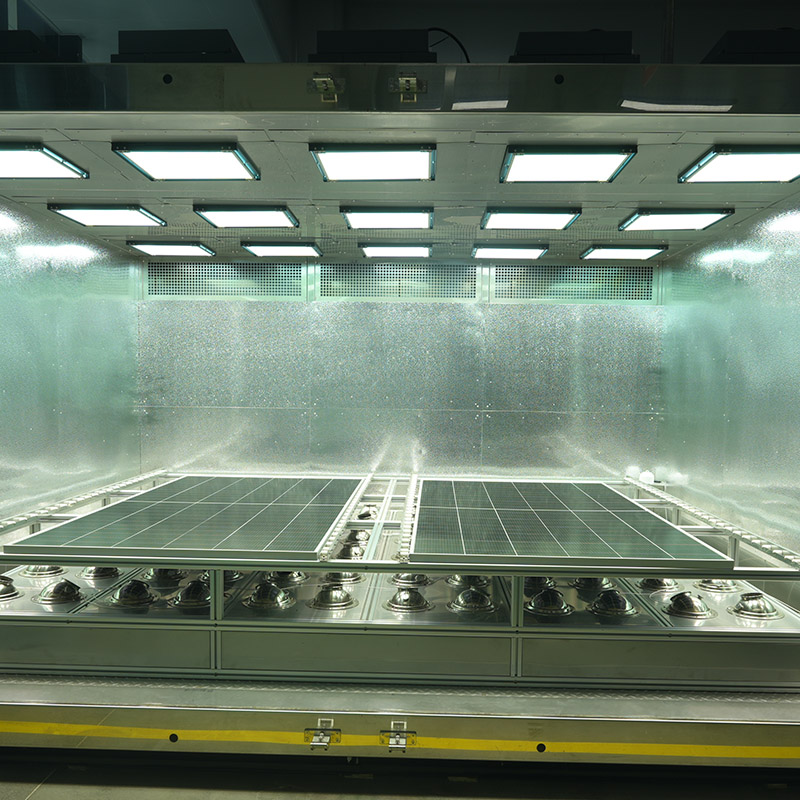

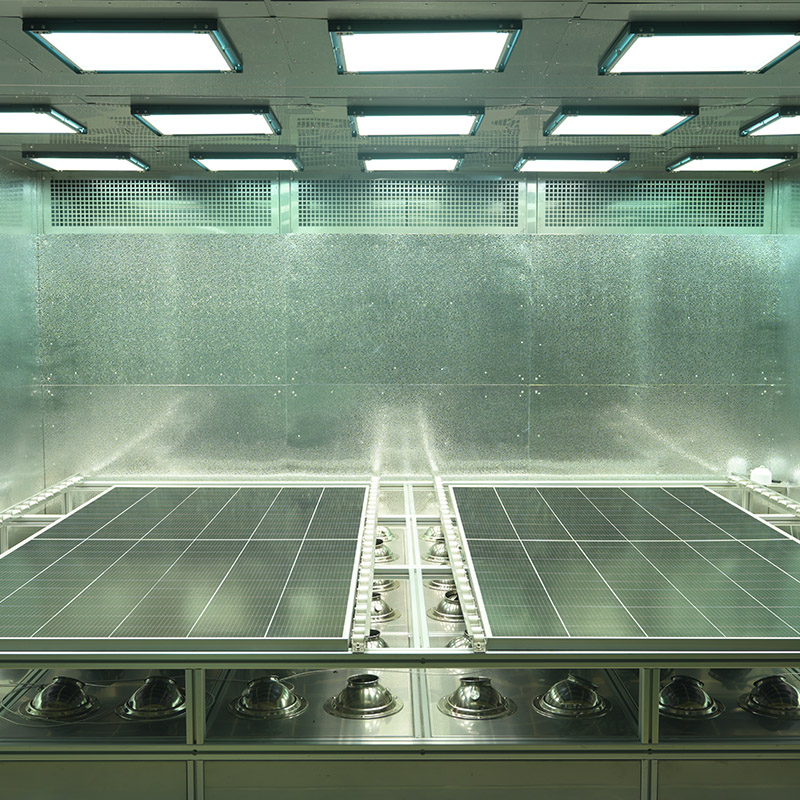

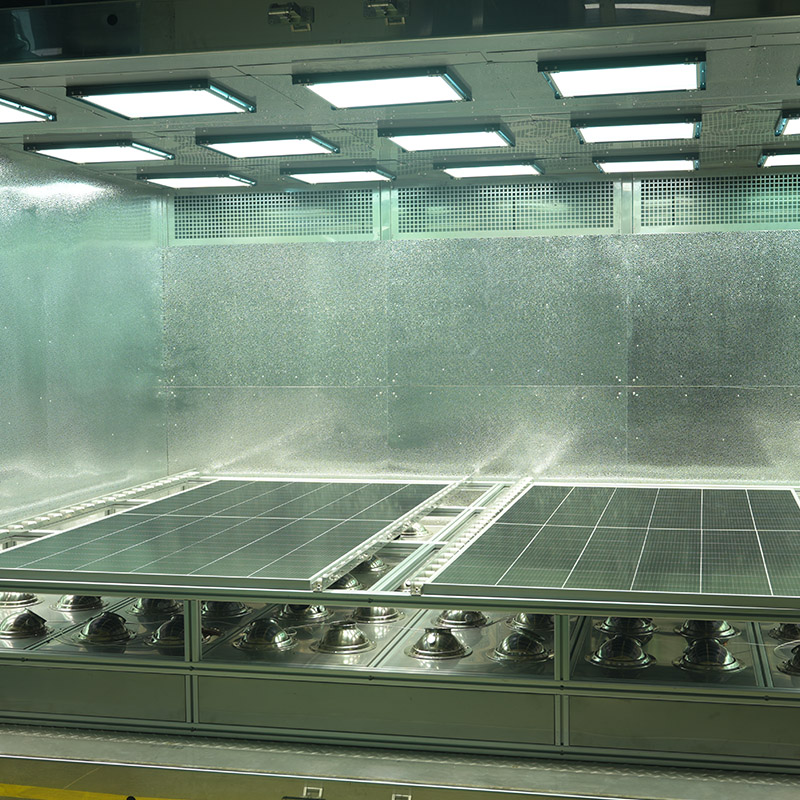

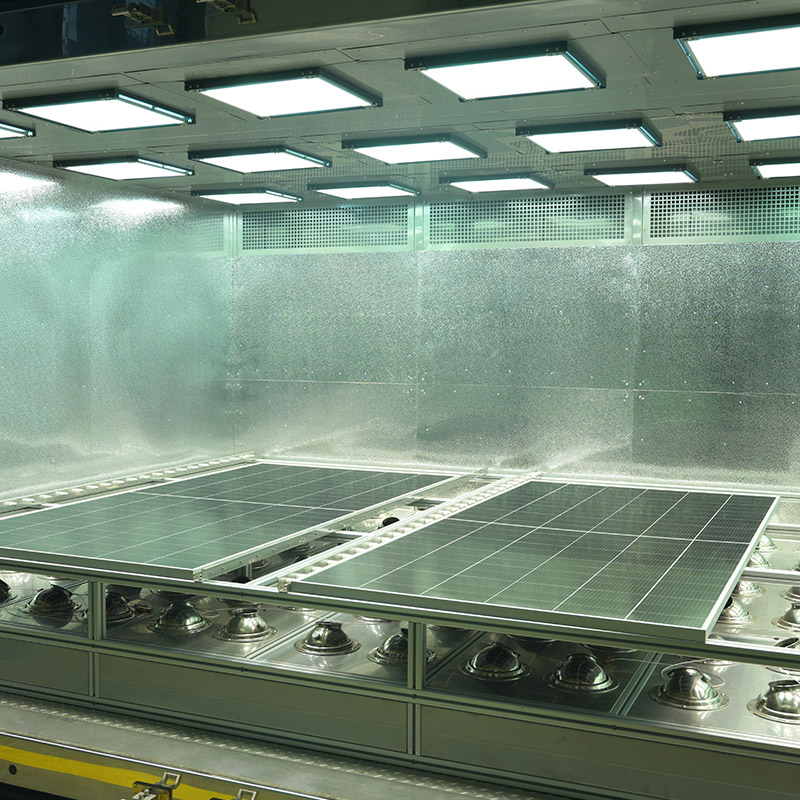

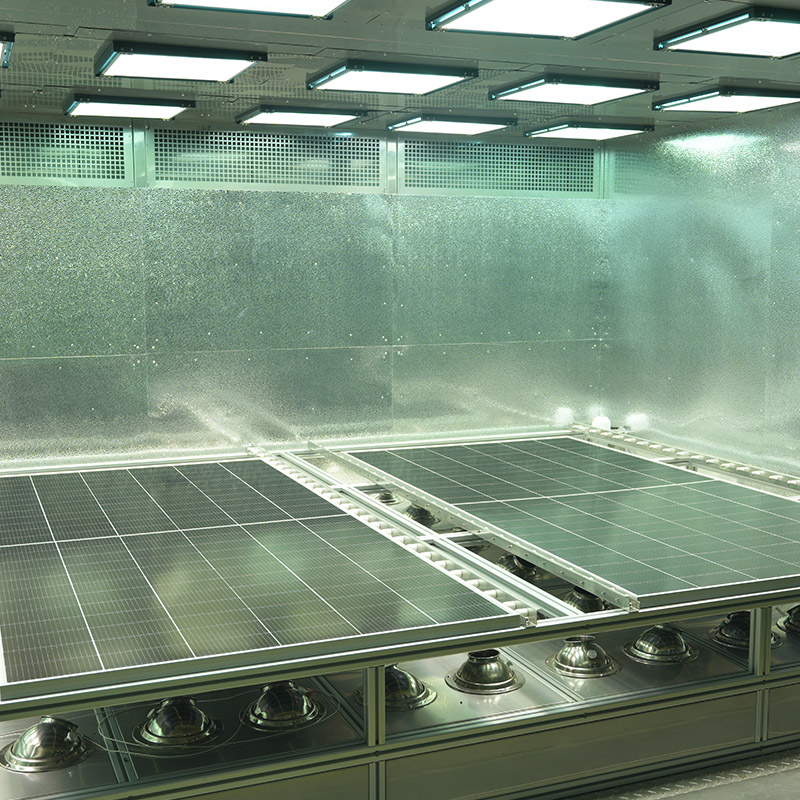

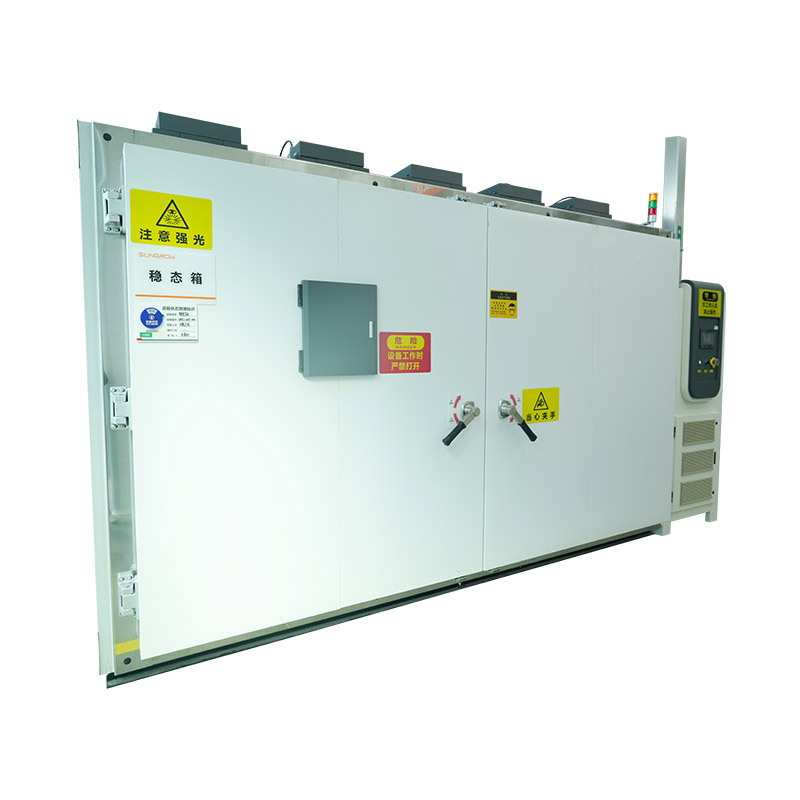

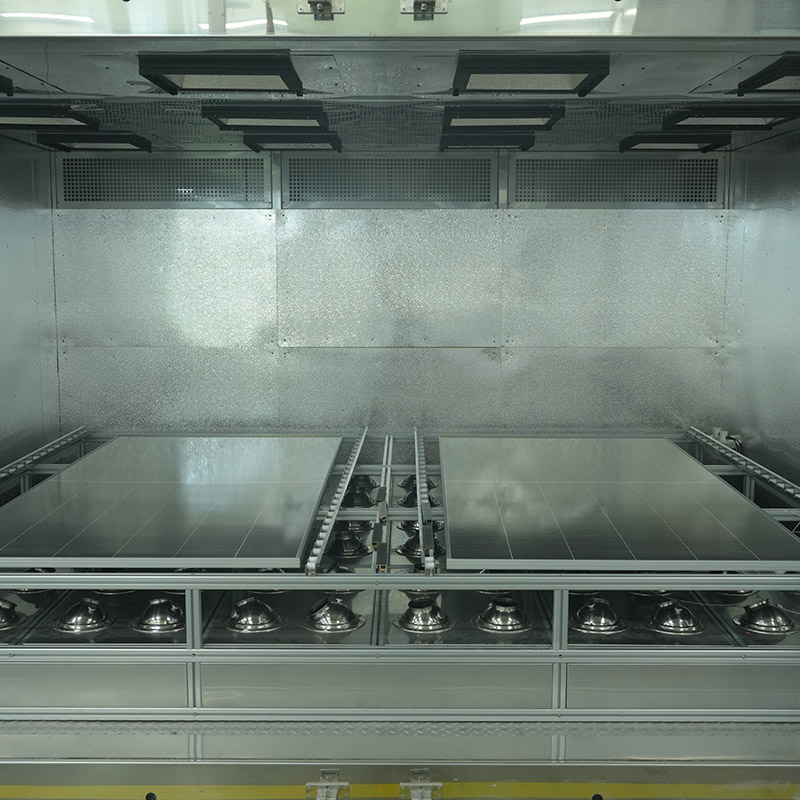

The Steady-state Test Chamber is specially designed for conducting long-duration exposure tests under constant environmental conditions such as temperature, humidity, and irradiance. It is primarily used to simulate real-world steady operating conditions and evaluate long-term performance degradation of photovoltaic (PV) modules and materials.

The equipment complies with IEC 61215, IEC 61853-1, and other relevant standards, and is crucial for PV module energy rating and durability testing.

  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
  • Steady-state Test Chmaber
Contact Us
  • Applicable Standards

    Walk-in Sunlight Simulation Test Chamber
    Model: HY-SUN Series

    Product Name: Walk-in Sunlight Simulation Test Chamber (Steady-State Solar Simulator)

    Model Number: HY-SUN-600 / HY-SUN-2624 / HY-SUN-3226 / HY-SUN-5228

    Key Features

    • Excellent temperature uniformity and high test accuracy
    • Adjustable airflow volume, velocity, and direction via air deflectors to ensure smooth circulation; optional surface temperature control function available
    • Automatic load calculation for optimized system output and automatic light intensity compensation
    • High-intensity lamps with fewer units and superior uniformity, compliant with IEC Class B/C requirements

    Compliance Standards

    Photovoltaic Module & Material Irradiation / Hot Spot / Stability Standards

    • IEC 61215-2:2016 MQT 09 — Hot Spot Endurance Test
    • IEC 61215-2:2016 MQT 19 — Stability Test (Light Irradiation Preconditioning)
    • IEC 61730-2:2016 MST 21 — Temperature Test
    • IEC 61730-2:2016 MST 22 — Hot Spot Test
    • IEC 61853-1 — Photovoltaic Module Energy Rating (Indoor Testing)
    • UL 1703 — Flat-Plate Photovoltaic Module Safety Standard
    • ISO 4892-2 — Plastics Exposure to Laboratory Light Sources
    • GB/T 9535 — Crystalline Silicon PV Module Design Qualification
    • IEC 60904-9 — Solar Simulator Classification & Spectral Matching
    • IEC 61215 / IEC 61646 — General Test Standards

    Technical Specifications

    Parameter HY-SUN-600 HY-SUN-2624 HY-SUN-3226 HY-SUN-5228
    Light Source Type Metal Halide Lamp (Short-arc Xenon optional)
    Spectral Distribution 280 nm ~ 3000 nm (Compliant with IEC 60904-9)
    Irradiance Level 1000 W/m² ~ 1300 W/m² (@ AM1.5)
    Irradiance Adjustment 50% ~ 100% Linear Adjustable
    Irradiation Area (mm) 600 × 600 2600 × 2400 3200 × 2600 5200 × 2800
    Non-uniformity Class B (≤ 5%)
    Spectral Grade Class B (300 nm ~ 1200 nm)
    Instability Class A
    Temperature Range RT+10°C ~ 50°C (Extendable to -45°C ~ 150°C)
    Humidity Range 20% ~ 95% RH (Combined Temp/Humidity/Light optional)
    Temperature Deviation ≤ ±2.0°C
    Lamp Power 2 kW / 4 kW per lamp
    Number of Lamps 1 4 8 14
    Refrigeration System Single Stage / Cascade (Depending on range)
    Compressor Brand Bitzer (Germany) / Tecumseh (France)
    Cooling Method Air-cooled / Water-cooled
    Module Capacity Component Testing 2 pcs 2 pcs 4 pcs
    Non-standard customization supported

    Note: The above specifications are standard configurations and can be customized upon request.
