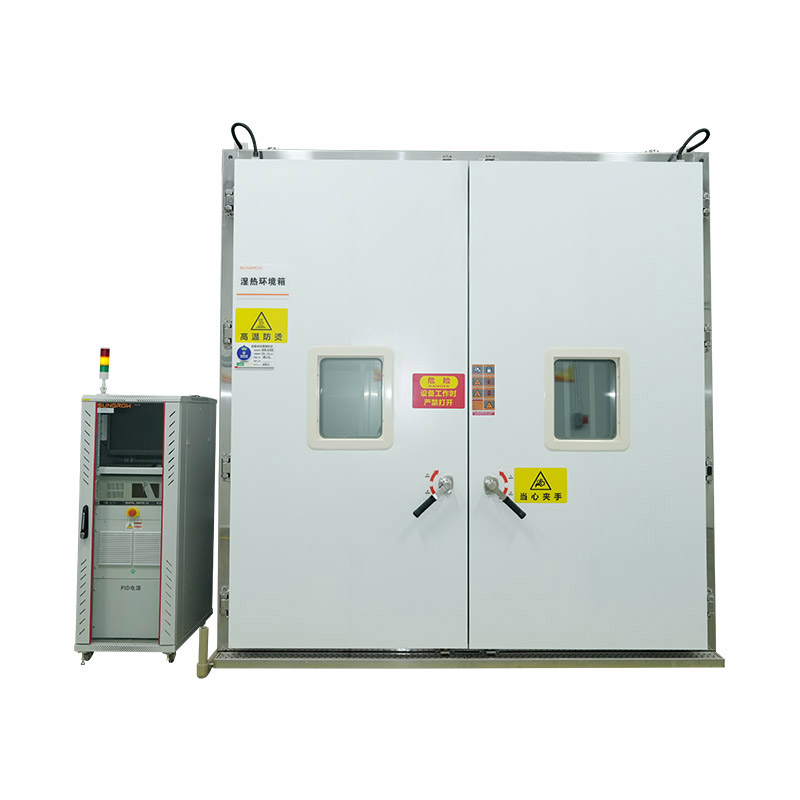

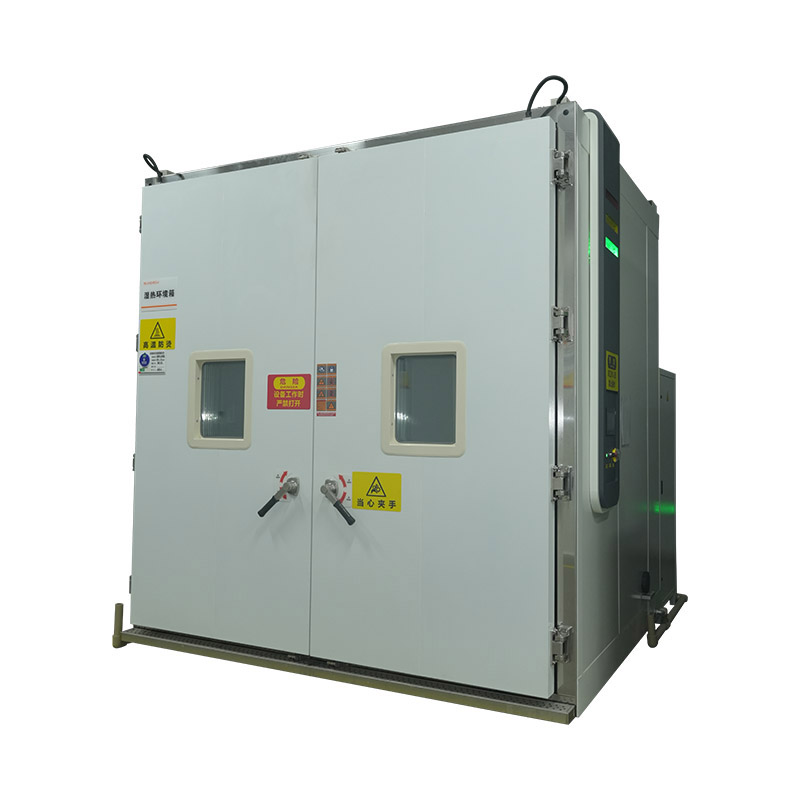

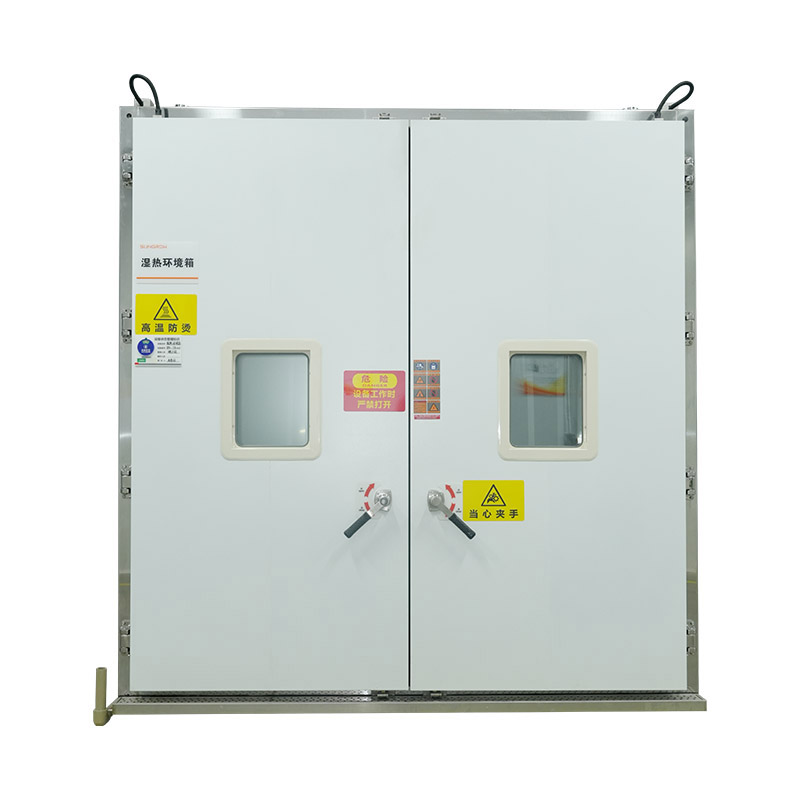

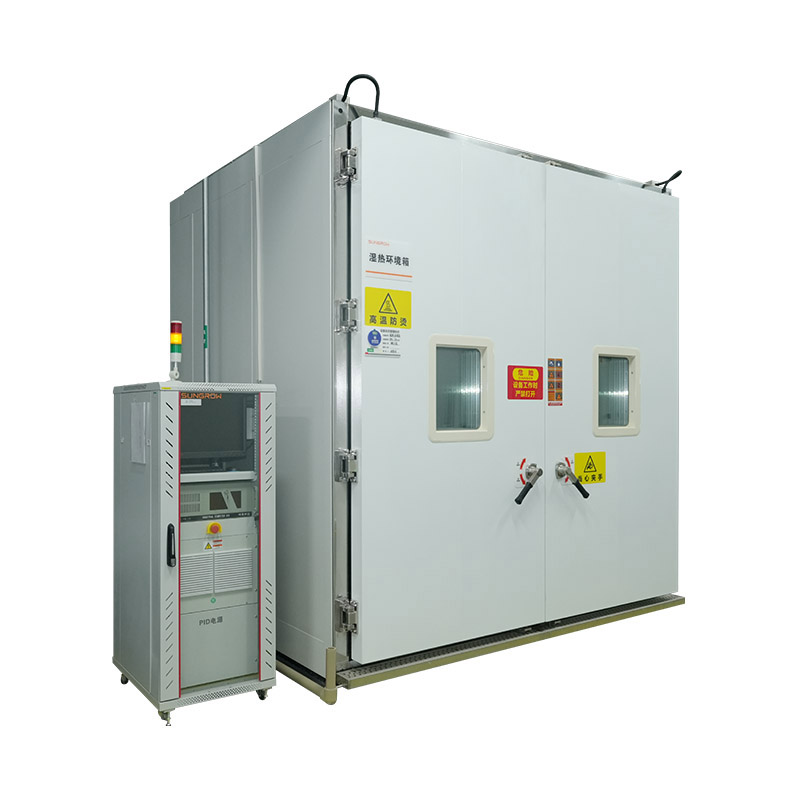

The Damp Heat Test Chamber is designed to evaluate the long-term reliability and environmental durability of photovoltaic (PV) modules under high temperature and humidity conditions.
This chamber simulates tropical or coastal environments to test material degradation, corrosion resistance, and adhesion failure. It is essential for IEC and UL standard certifications.

Walk-in High Temperature & Humidity Test Chamber (DH)

Model: HY-BRS-DH Series

Excellent temperature uniformity and high test accuracy
Adjustable airflow volume, velocity, and direction via air deflectors to ensure smooth air circulation.
Optional surface temperature control function to meet strict ramp rate requirements.
Automatic load calculation for optimized system output regulation.
Fully welded chamber structure prevents moisture leakage and enhances pressure resistance.
Integrated universal sample fixture with insulation and thermal isolation.

Compliance Standards:

IEC 61215:2021 – MQT 13: Damp Heat Test
IEC 61730-2 – MST 53: Damp Heat Test
UL 1703: Flat-Plate Photovoltaic Module Safety Standard
GB/T 19394: Damp Heat Test Method for Electronic Components
MIL-STD-810H: Military Environmental Reliability Test
IEC 61215-2:2016 MQT 13 Damp Heat Test
IEC 62804-1:2015 PID Test
Compliant with GB/T 2423.3 “Constant Damp Heat Test” equipment requirements
GB/T 19394-2003
GB/T 6495.4-1996
GB/T 2423.2-2001 Test B: High Temperature Test Method
GB 11158 Technical Conditions for High Temperature Chambers

Parameter	HY-BRS-DH-5.2	HY-BRS-DH-7.8	HY-BRS-DH-11.4	HY-BRS-DH-X
Temperature Range	RT ~ 125°C
Humidity Range	20% – 98% RH (20°C to 90°C)
Insulation Thickness	≥ 150 mm
Workspace (D × W × H) mm	1800 × 1000 × 2900	1800 × 1500 × 2900	1800 × 2200 × 2900	Custom
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C
Ramp Rate	Customizable
Humidity Fluctuation	≤ ±1.0°C
Humidity Uniformity	≤ 3.0% RH
Module Capacity	3–5 pcs	6–8 pcs	10–12 pcs	Custom
Cooling Method	Air-cooled / Water-cooled
Compliance	IEC + UL
Non-standard customization supported

Note: The above specifications are standard configurations and can be customized upon request.
