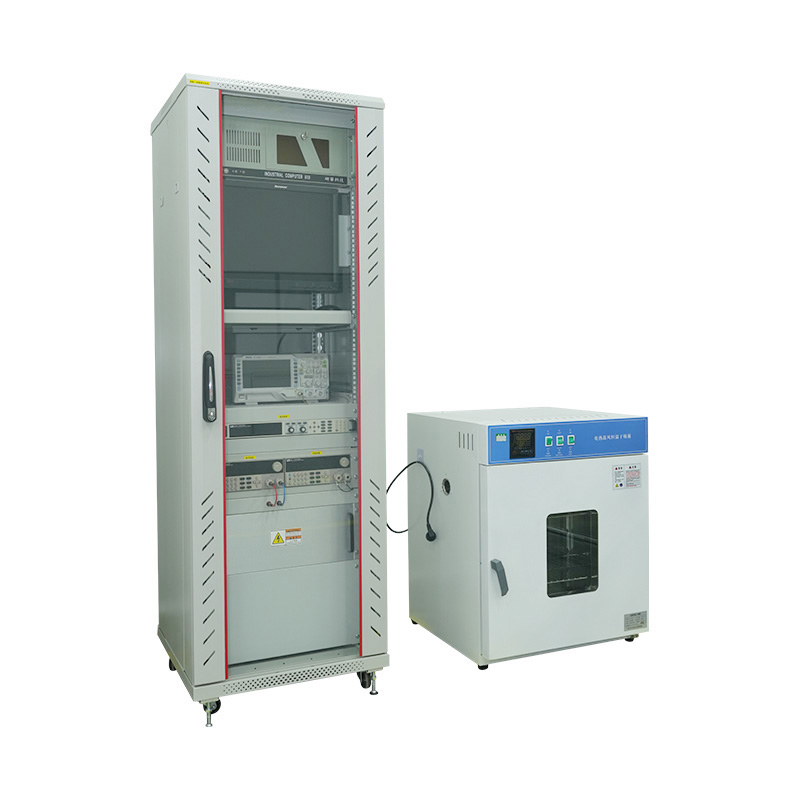

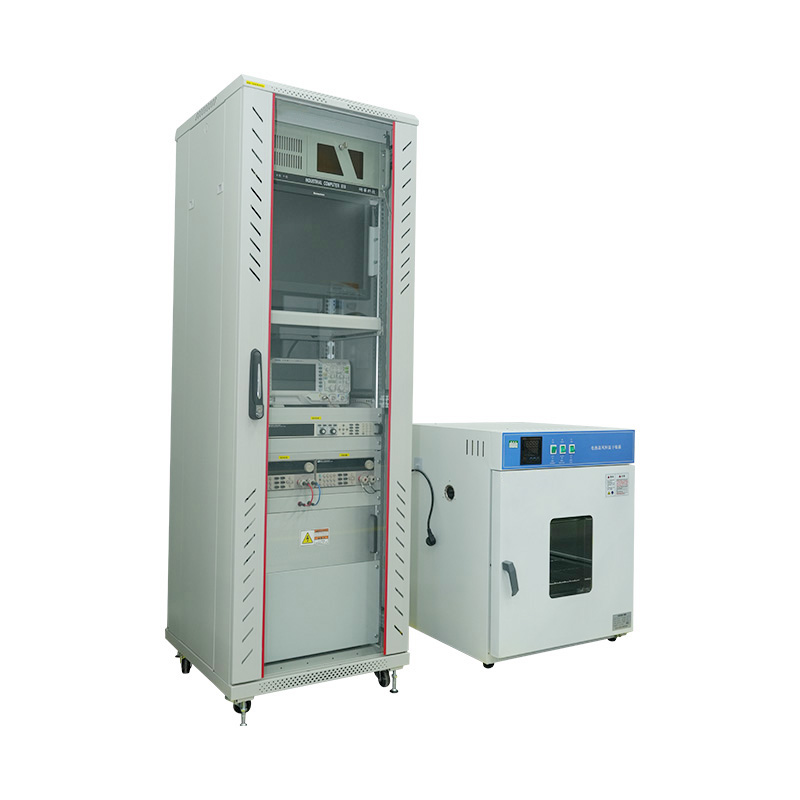

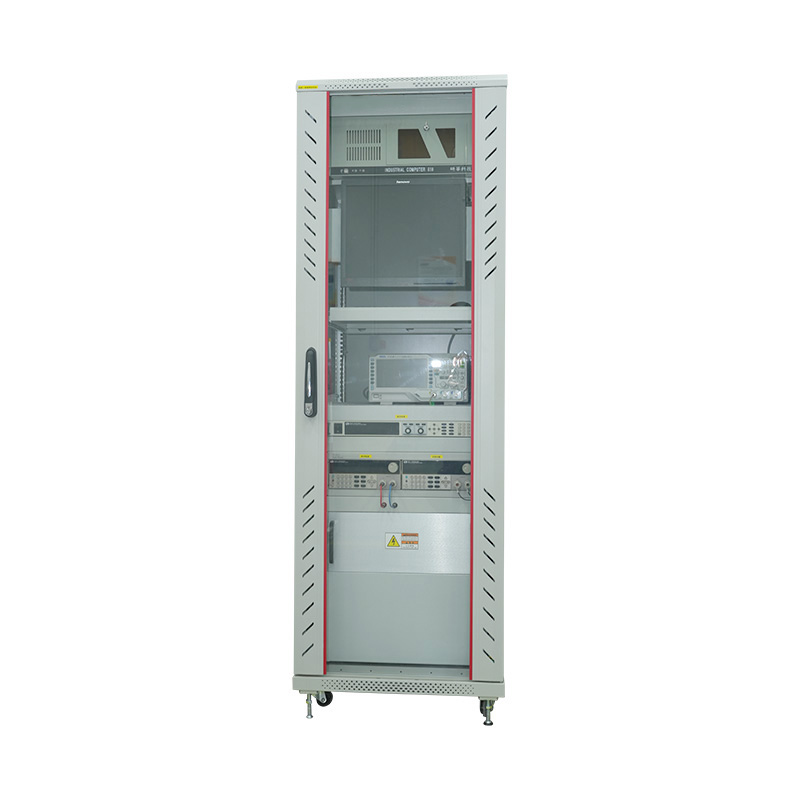

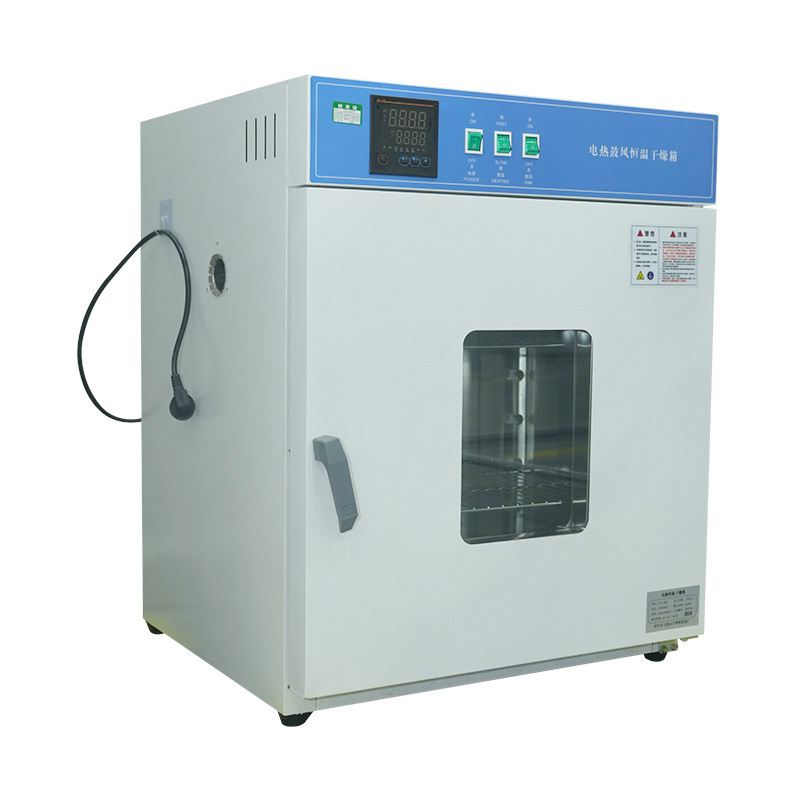

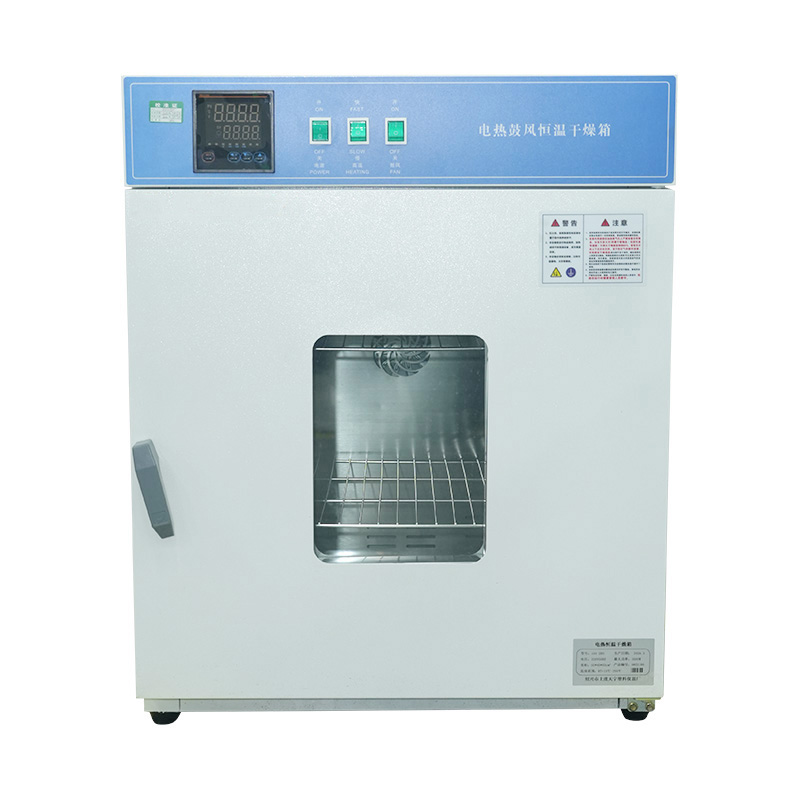

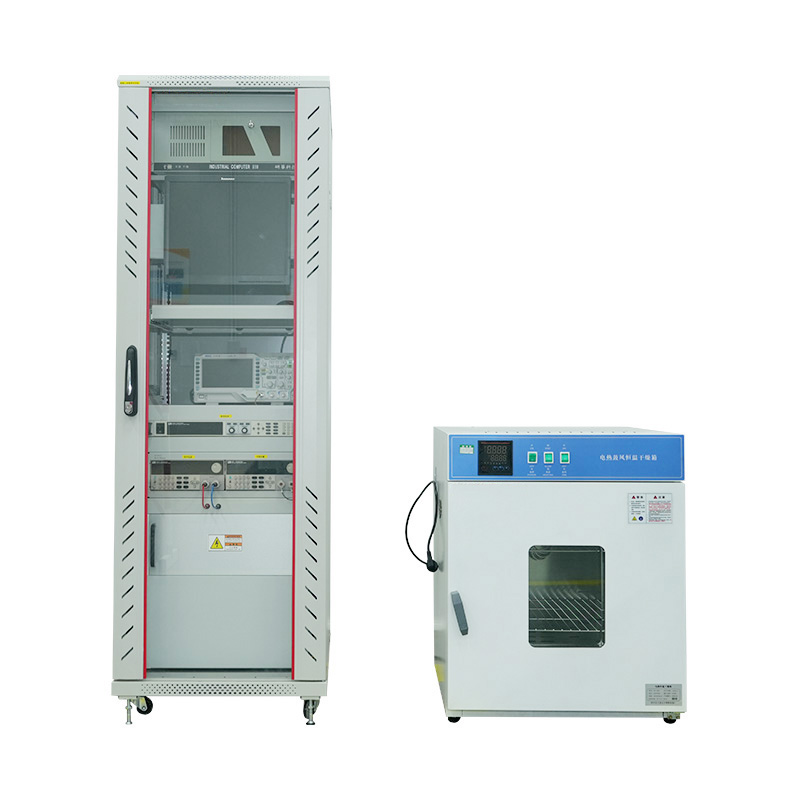

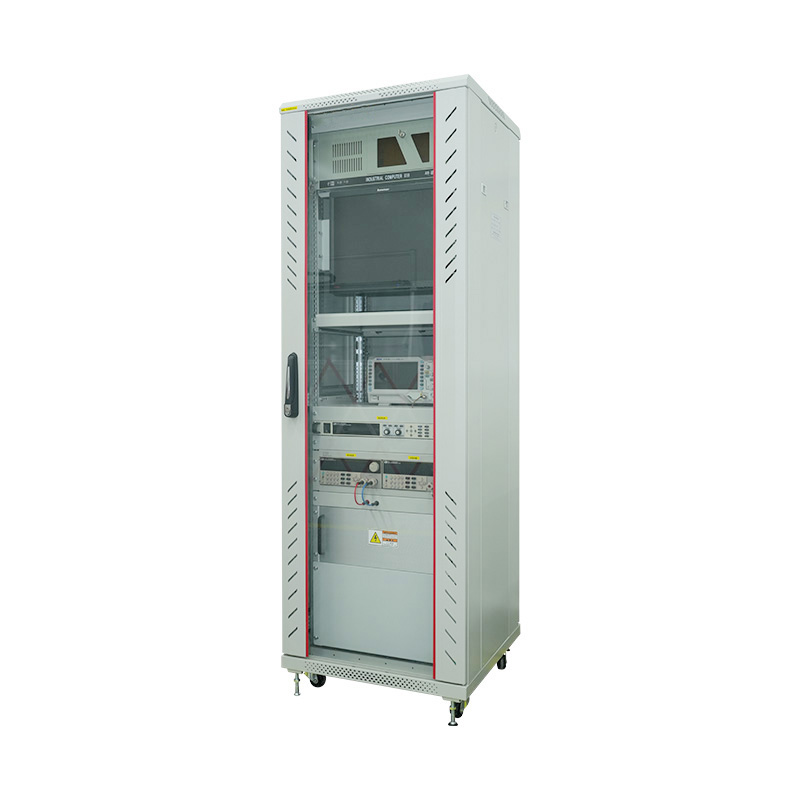

Bypass Diode Tester

How can bypass diodes be used to improve the performance and safety of photovoltaic (PV) modules?

In the photovoltaic (PV) industry, bypass diodes are key components for ensuring the performance and reliability of PV modules. With the increasing global demand for green energy, photovoltaic power generation, as an important renewable energy source, has become widely used. However, the stability and long-term performance of PV systems depend on multiple key factors, among which the operating condition of the bypass diode directly impacts the module's power generation efficiency and safety.

What is a bypass diode, and why is it so important?

The bypass diode in a PV module protects the module from damage caused by "hotspot effects" due to partial shading, dirt, dust, and other factors. When a PV cell fails to function properly due to shading or a fault, the bypass diode automatically switches into the circuit, directing current to the functioning portion, thereby preventing overheating and potential fire hazards. Therefore, the bypass diode not only ensures the stable operation of the PV module but also extends its service life.

However, during the production and application of PV modules, bypass diodes may fail due to quality issues or aging, which can affect the power generation efficiency of the entire module. Therefore, regular bypass diode performance testing is crucial to ensuring the long-term stability of photovoltaic systems.

The Importance of Bypass Diode Testing

During the production and installation of photovoltaic modules, bypass diode testing is often a core component of system quality assurance. Accurate testing can determine whether the diodes can function properly under partial shading and whether they are susceptible to damage or aging. These tests not only improve module performance and safety but also prevent future failures or accidents.

Key Factors in Selecting a Bypass Diode Test Chamber

For photovoltaic module manufacturers and testing laboratories, selecting an efficient and reliable bypass diode test chamber is crucial. The following are several key factors to consider when selecting test equipment:

1. Test Accuracy and Reliability

Test accuracy is one of the key criteria for evaluating bypass diode test chambers. High-precision test equipment can more accurately assess the operating status of bypass diodes, avoid missed detections due to testing errors, and ensure the reliability of test results.

2. Environmental Adaptability

PV module testing often requires exposure to a variety of environmental conditions, including high and low temperatures, and high humidity. Therefore, selecting test equipment with strong environmental adaptability is particularly important. A suitable test chamber should be able to simulate a variety of real-world usage scenarios, ensuring representative and practical test results.

3. Automated Testing Capabilities

With increasing testing demand, test efficiency has become a crucial factor. Automated testing can significantly improve test efficiency and reduce manual errors and inconsistencies, making it particularly suitable for large-scale production testing.

4. Compliance with International Standards

In the international market, quality requirements for photovoltaic products are becoming increasingly stringent. Testing equipment that meets international standards can help companies meet relevant certification requirements and ensure smooth product entry into the international market. Therefore, selecting testing equipment that meets global certification standards is crucial.

Advantages of Shanghai Houyao Testing Equipment Co., Ltd.'s Bypass Diode Test Chamber

As a leading domestic testing equipment manufacturer, Shanghai Houyao Testing Equipment Co., Ltd.'s extensive technical expertise in the photovoltaic testing field enables it to continuously innovate and meet the industry's growing demands.

1. Industry-Leading Technology R&D

Shanghai Houyao Testing Equipment Co., Ltd. has a R&D team of 47 technicians specializing in the research and production of environmental simulation test equipment and optical simulation equipment. Since its establishment in 2012, the company has been committed to providing more accurate and reliable testing solutions for the photovoltaic industry. Specifically focusing on bypass diode test chambers, the company has developed a series of high-precision test equipment that meets international certification standards.

2. Comprehensive Product Line

Shanghai Houyao Testing Equipment Co., Ltd.'s product line covers a wide range of photovoltaic testing equipment, including low-voltage test chambers, full-vehicle solar simulation chambers, and 2000W and 4000W photovoltaic UV and solar simulation systems. These devices are widely used in industries such as aerospace, automotive electronics, photovoltaics, biopharmaceuticals, and energy storage, meeting the testing needs of diverse customers.

3. Customized Services

Shanghai Houyao Testing Equipment Co., Ltd. not only provides standardized testing equipment but also develops customized solutions tailored to specific customer needs. Whether in terms of test range, temperature and humidity control, or automation level, Shanghai Houyao can provide customized solutions that meet customer needs, helping them improve testing efficiency and accuracy.

With the rapid development of the photovoltaic industry, bypass diodes, as a crucial component in ensuring the performance and safety of photovoltaic modules, require critical testing accuracy and reliability. Selecting a high-quality bypass diode test box is crucial for ensuring the long-term stability of photovoltaic modules. Shanghai Houyao Testing Equipment Co., Ltd., leveraging its strong technical R&D capabilities and extensive industry experience, has become a leading company in the photovoltaic testing field. We are committed to providing customers with efficient, accurate, and reliable testing equipment, contributing to the sustainable development of the photovoltaic industry.
