Thermal Cycling Test Chamber

Thermal Cycling Test Chamber

The Thermal Cycling Test Chamber is designed to evaluate the thermal fatigue resistance and interlayer bonding durability of photovoltaic (PV) modules. It simulates rapid temperature changes from High-performancely cold to hot environments, helping identify microcracks, solder joint failures, and delamination risks.

This chamber is crucial for PV manufacturers seeking IEC 61215 certification and long-term product reliability validation.

  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
  • Thermal Cycling Test Chamber
Contact Us
  • Applicable Standards

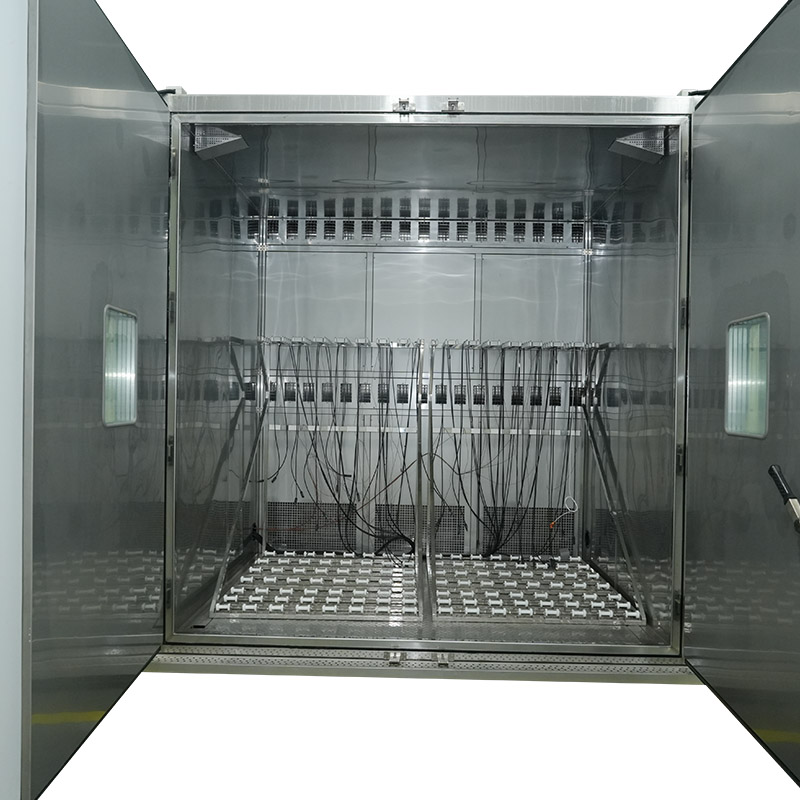

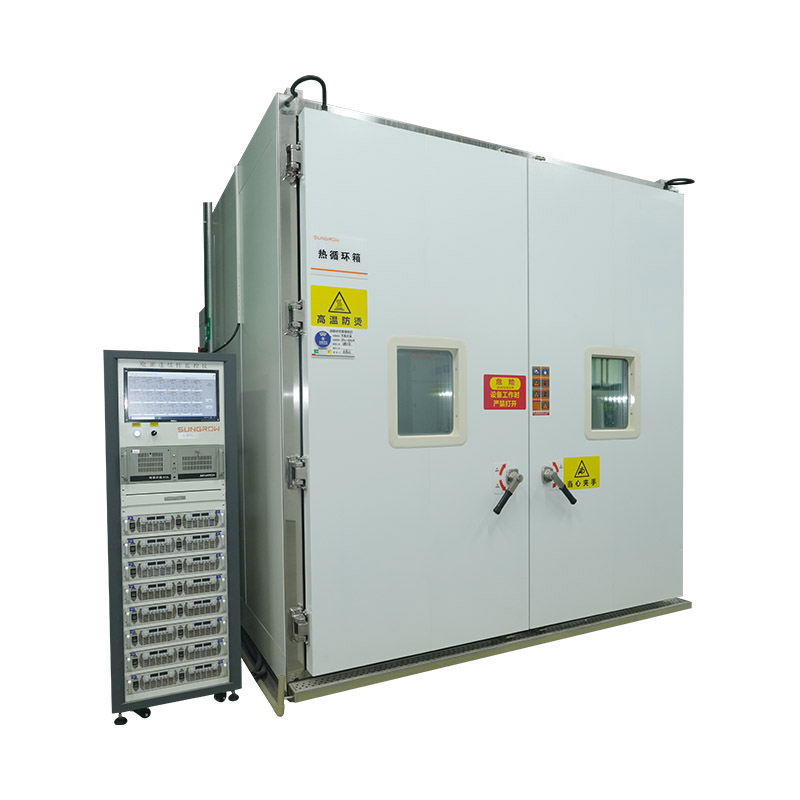

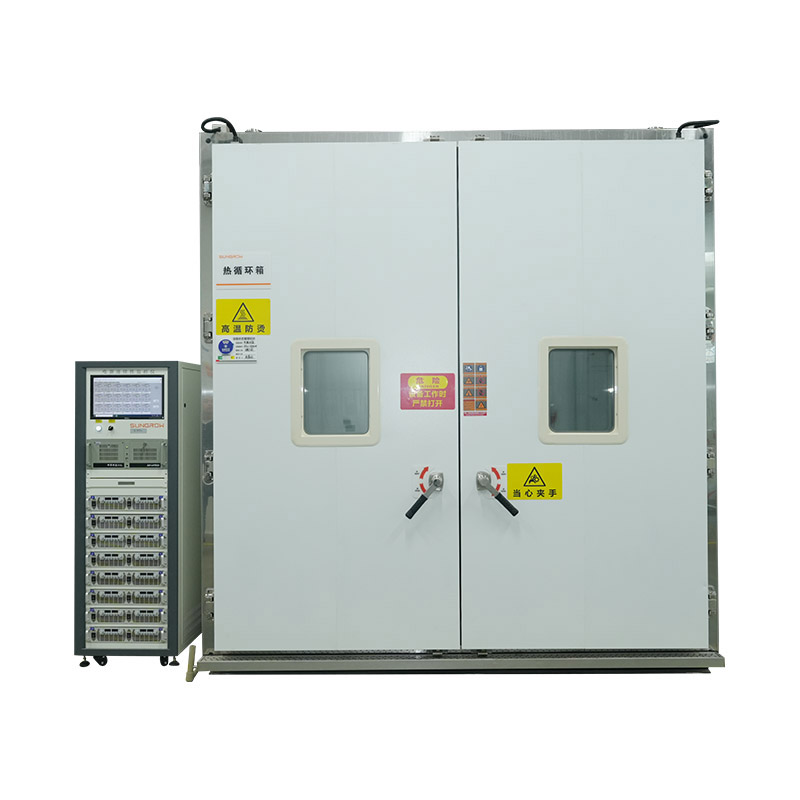

    Walk-in Thermal Cycling Test Chamber (TC)
    Model: HY-BRS-TC Series

    Product Name: Walk-in Thermal Cycling Test Chamber

    Model Number: HY-BRS-TC Series

    Key Features

    • Excellent temperature uniformity and high test accuracy
    • Adjustable airflow volume, velocity, and direction via air deflectors to ensure smooth circulation
    • Optional surface temperature control function to meet strict ramp rate requirements
    • Automatic load calculation for optimized system output regulation
    • Fully welded chamber structure prevents air leakage and enhances pressure resistance

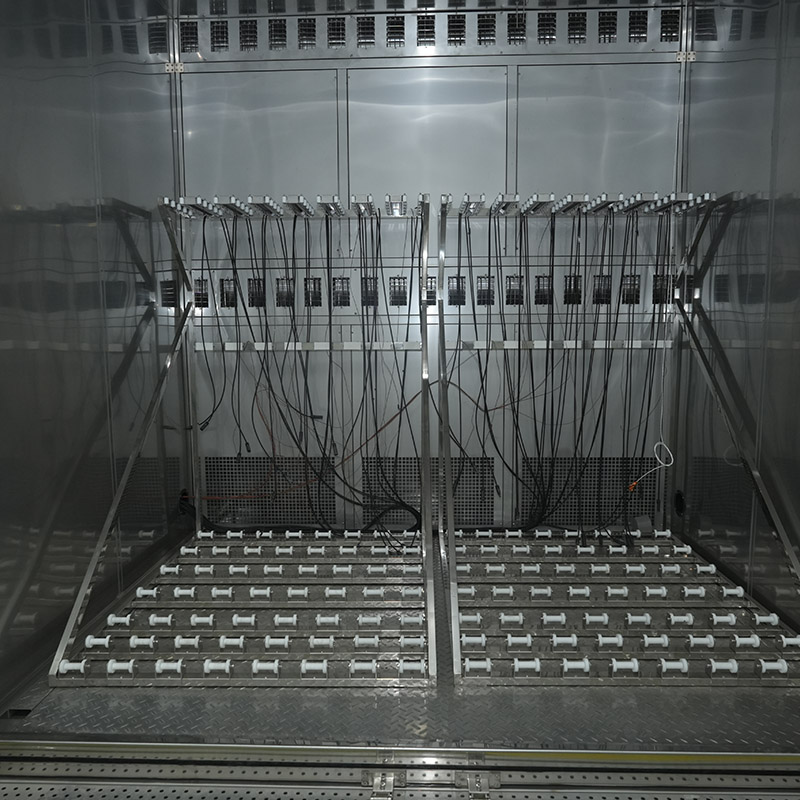

    • Integrated universal sample fixture with insulation and thermal isolation

    Compliance Standards

    Photovoltaic & Electronics Specific Standards

    • IEC 61215-MQT 11: Thermal Cycling Test
    • IEC 61730-2-MST 51: Thermal Cycling Test
    • UL 1703: Flat-Plate Photovoltaic Module Safety Standard
    • GB/T 2423.22: Temperature Change Test for Electrical Products
    • MIL-STD-810H: Military Environmental Adaptability Test
    • IEC 61215-2:2016 MQT 11 Thermal Cycling
    • IEC 61730-2:2016 MST 55 Cold Test
    • IEC 61730-2:2016 MST 56 Dry Heat Test
    • GB/T 19394-2003 Temperature Cycling for Components

    General Environmental & Thermal Standards

    • UL 1703:2018 Chapter 35 Temperature Cycling
    • GB 11158 Technical Conditions for High Temp. Chambers
    • GB 10589-89 Low Temperature Chamber Spec.
    • GB 10592-89 High/Low Temperature Chamber Spec.
    • GB/T 2423.1-2008 Low Temperature Test
    • GB/T 2423.2-2001 High Temperature Test
    • GB/T 2423.22-2002 Temperature Variation Test
    • GJB 150.3A-2009 High Temperature Test
    • GJB 150.4A-2009 Low Temperature Test
    • GJB 150.5A-2009 Thermal Shock Test
    • IEC 60068-2-1 Low Temperature Test
    • IEC 60068-2-2 High Temperature Test

    Technical Specifications

    Parameter HY-BRS-TC-5.2 HY-BRS-TC-7.8 HY-BRS-TC-11.4 HY-BRS-TC-X
    Temperature Range -45°C ~ 125°C
    Insulation Thickness ≥ 150 mm
    Workspace (D×W×H) mm 1800×1000×2900 1800×1500×2900 1800×2200×2900 Custom
    Temperature Fluctuation ≤ ±0.5°C
    Temperature Uniformity ≤ 2.0°C
    Ramp Rate Customizable
    Cooling Method Mechanical Compression
    Refrigeration System Two-stage Cascade
    Compressor Brand Bitzer / Bock (Germany)
    Module Capacity 3–5 pcs 6–8 pcs 10–12 pcs Custom
    Cooling Mode Water-cooled
    Compliance IEC + UL
    Non-standard customization supported

    Note: The above specifications are standard configurations and can be customized upon request.
