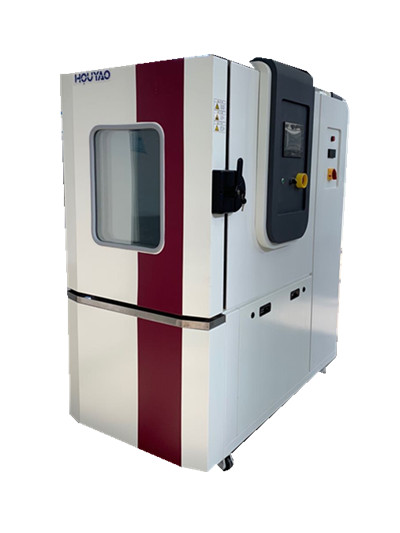

产品特点:
用来测试材料结构或复合材料,在瞬间下经极高温及极低温的连续环境下所能忍受的程度,藉以在最短时间内试验其因此所引起的化学变化或物理伤害.适用的对象包括金属,塑料,橡胶,电...等材料,可作为其产品改进的依据或参考。●It is used for testing the material structure or compound material; it can bear under high temperature and low temperature continuous environment; the chemical change or physical injurycaused by the test during the shortest time can betested; the applicable object comprises metal, plastics,rubber, electronics, etc; and it can be used as the basisor reference of product improvement.
Reference Standards 参考标准 | ||
●GB/T5170.2-2008 温度试验设备 | ●GB/T5170.2-2008 Temperature Testing Equipment | |
●GB/T5170.5-201 6 湿度试验设备 | ●GB/T5I70.5 2016 Humidity Test Equipment | |
●GB10592-89 高低温试验箱技术条件 | ●GB/T2423.1-2008(IEC68-2- I) Test A: Low Temperature Testing Method | |
● GB/T2423.1-2008(IEC68-2- 1)试验A:低温试验方法 | ● GB/T2423.2-2008(IEC68-2-2) Test A: High Temperature Testing Method | |
●GB/T2423.2-2008(IEC68-2-2)试验A:高温试验方法 | ● GB/T2423.3-2006(IEC68-2-3) Test Ca: Steady state Damp Heat Test (C) | |
●GB/T2423.2-2008 高温试验箱试验方法 | ●GB/T2423.4-2006(IEC68-2-30) Test Dbc: Cyclic Damp Heat Test (C) | |
●GB/T2423.3-2006(1EC68-2-3)试验Ca:恒定湿热试验(C) | ●GJBI50.3A-2009(MIL-STD-8I0F -2000) High Temperature Test | |
●GB/T2423.4-2006(IEC68-2- 30)试验Dbc:交变湿热试验(C) | ●GJBI50.4A-2009(MIL-STD-8I0F- 2000) Low Temperature Test | |
●GJB150.3A-2009(MIL-STD-810F-2000)高温试验 | ●GB GJBI50.3A-2009(MIL-STD-8I0F -2000) High Temperature Test | |
●GJB150.4A-2009(MIL-STD-810F- 2000)低温试验 | ●GJBI50.4A-2009(MIL-STD-8I0F- 2000) Low Temperature Test | |
●GJB150.9A-2009(MIL-STD-810F-2000)湿热试验 | ●GJBI50.9A-2009(MIL -STD-8I0F 2000) Damp Heat Test |
型号 Model |
SQW262L5/SQW262L10
/SQW262L15 |
SQW420L5/SQW420L10/
SQW4202L15 |
SQW1000L5/SQW1000L10
/SQW1000L15 |
SQW2400L5/SQW2400L10
/SQW24002L15 |
|
标称容积(L) Volume |
262 |
420 |
1000 |
2400 |
|
温度范围 Temperature range |
-70℃~+150℃ |
||||
湿度范围 Humidity range |
(20~98)%RH/(20~85)℃ |
||||
温度波动 Temperature fluctuation |
±0.5℃ |
||||
温度偏差 Temperature deviation |
±2.0℃ |
||||
湿度偏差 Humidity deviation |
±3%RH(≥75%RH),±5.0%RH(≤75%RH) |
||||
温度变化频率 Temperature chanqe rate |
5/10/15℃/min(线性/非线性)(linear/nolinear) |
||||
温度变化速率范围 Range of temperature change rate |
-55℃~+85℃/-40℃~+85℃ |
||||
内部尺寸(mm) Internal size |
700 |
700 |
1000 |
1300 |
|
750 |
750 |
1000 |
1300 |
||
500 |
800 |
1000 |
1400 |
||
材料MATERIAL |
外壳 Shell |
双面电解钢板SECC,表面喷塑处理 Double-side electrolysis steel plate SECC and surface spraying plastics |
|||
内壳 Inner shell |
SUS304/2B(雾面)不锈钢板 SUS304/2B(for surface)stainless steel plate |
||||
保温 Thermal insulation |
硬质聚氨酯泡沫+超细玻璃化纤 Hard polyurethane foam +ultra-fine glass fiber |
||||
调节器 Regulator |
加热器Heater |
镍铬合金加热丝式加热器 Nicochrome fin heating wire heater |
|||
加湿器Humidifier |
不锈钢铠装加热器(外部加湿)Stainless steel armored heater(external humidifying) |
||||
风机 Fan |
后倾式风机 Rear fan |
||||
制冷机 Refrige rator |
机械式压缩机 Mechanical compressor |
||||
制冷剂 Refrigera ting fluid |
R404a/R23 |
||||
制冷方式 Refriger ating mode |
机械压缩二元复叠制冷方式 Mechanical binary cascade refrigeration mode |
||||
控制器 Controller |
显示器Display |
7.0英寸以上,TFT彩色LCD显示屏 Above 7.0 Inch,TFTcolor LCD display |
|||
运行方式 Operation mode |
程序方式,定值方式 Program operation,fixed value operation |
||||
设定方式 Setting mode |
中文菜单,触摸屏方式输入 Chinese menu,input by touch screen |
||||
程序容量 Program capacity |
可编辑程序数量:最大99个,步数:999步,循环数:最大99个 Number of editable program:99 maximum;step:999 steps;cycle number:99 maximum |
||||
设定范围 Setting range |
温度:根据设备的温度工作范围调整(上限+5℃,下限-5℃) 湿度:0RH~100%RH(温湿度试验设备) Temperature:adjust according to the temperature range of the equipment(upper limit:+5℃,lower limit:-5℃);humidity:0%RH~100%RH(temperature and humidity test equipment) |
||||
显示分辨率 Display resolution |
温度:0.01℃,时间:0.1MIN 湿度:0.1RH(温湿度试验设备)Temperature:0.01℃;time:0.1mim;humidity:0.1%RH( temperature and humidity test equipment) |
||||
输入 Input |
热电阻 Thermal resistance |
||||
通讯功能(选购) |
RS-485接口,具有本地和远程通讯功能,监控软件、RS-485/RS-232转换器,需占用PC机的COM和USB接口各一个;最多可同时连接16台设备,电缆累计长度最大800M RS-485 interface with local and remote communication function,monitoring software,RS-485/RS-232 convertor,one COM interface and one USB interface occupying PC computer;connect 16 sets of equipment at most;and the maximum accumulated length of the cable is 800M. |
||||
控制方式 Control mode |
抗积分饱和PID Anti-integration saturtion PID |
||||
曲线记录功能 Curve recording function |
具有带电池保护的RAM。可保存设备的设定值和采样值及采样时刻的时间,最大记录时间为350天(当采样周期是1.5MIN时)RAM with battery protection:it can save the setting value and sampling time of equipment,and the maximum recording time is 350 days(when the sampling period is 1.5min) |
||||
USB功能 USB function |
配U盘一个,PC机专用软件光盘一张(繁体)中文(英文windows操作系统),通过PC软件编制试验程序保存到U盘,再从U盘将试验程序调出并存入控制器中,也可控制器存U盘,再存入PC机进行分析和管理,可将存储在控制器内记录的试验曲线记录数据转存到U盘,通过PC机专用软件直接显示和打印试验数据/曲线,将数据转成文档格式文件。控制器记录数据为:2路温度-设定温度和实测温度;2路湿度-设定湿度和实测湿度。It is equipped with one U-disk and software disk special for PC computer (applicable for simple and complex Chinese,English WINDOWS operation system);the test program is compiled by PC software snd saved in U-disk;and then the test program is tuned out from the U-disk and saved in the controller;or the controller can be saved in U-disk;and the it is saved in PC computer to be analyzed and managed.The record date of the test curve recorded in the controller can be saved to U-disk;tne test data/curve is directly displayed and printed by special software of PC computer;and the data is converted into format file.The recording data of the controller is as follows:two-circuit temperature-setting temperature and actually measured temperature;two-circuit humidity-setting humidity and actually measured humidity. |
||||
附属功能 Auxiliary function |
故障报警及原因、处理提示功能;断电保护功能;上下限温度保护功能;日历定时功能(自动启动或自动停止);自诊断功能 Fault alarm and reason,treatment prompt function,power failure function,and upper and lower temperature limit protection function;Calendar timing function (automatic starting or automatic stopping);self-diagnostic function |
||||
供水 Water supply |
供水方式 Water supply mode |
水泵供水 Supply water by water pump |
|||
储水箱 Water storage tank |
抽屉水箱(自制)Drawer water tank (self-control) |
||||
水质 Water quality |
电阻率≥500Ωm Resistance rate≥500Ωm |
||||
电源 Power |
AC380V(±10%)V 50HZ 三相四线+保护地线 AC380V(±10%)V 50HZ three-phase four-wire +protection ground wire |
||||
标准配置 Standard configuration |
电热防结露中空观察窗360mmX440mm1个,引线孔左右各一个,样品架2套,照明灯,累时器(内置),电源线1条(长约3米),样品控制端子1个,RS-485/232接口一个,USB接口1个,U盘1个。One 360mmX440mm of electric heating anti-condensation hollow glass observation window;,one left and right wire hole;;two sample racks,floodlight ,time accumulator(internal),fone power cable (3m long),one sample control terminal,one RS-485/232 interface,one control terminal of test power,one USB interface and one U-disk. |
||||
安全装置 Safety device |
制冷系统:压缩机超压、压缩机过热、压缩机电机过流、冷却水供水欠压(水冷式)加湿系统(SQW型号):加热管干烧、供水异常、排水异常 试验箱:超温保护、温度熔断丝、风机电机过热 其他:总电源相序和缺项保护、漏电保护、负载短路保护 Refrigerating system:over-voltage of compress,over-heating of compressor,over-current of compressor motor,water supply and under-voltage of cooling water(water cooling) Humidifying system (SQW model): dry burning of heating tube, abnormal water supply and abnormal water drainage Test chamber: over- temperature protection, temperature fuse wire, over-heating of fanand motor, others: phase sequence of total power and lacking protection, leakage protection and load short circuit protection |
