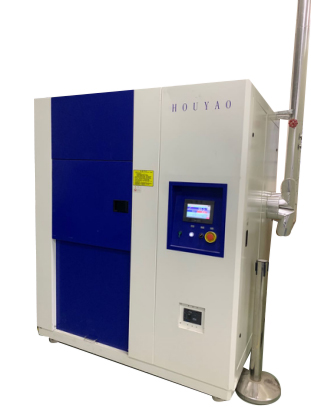

产品特点：本设备适用于各类电工电子产品及其他产品，零部件和材料进行高低温恒定和各种温度冲击及温度迅速变化的可靠性试验。
|
The equipment is suitable for each kind of electronic productand other product; and the parts and materials are subjected tohigh/low temperature constant and each kind of temperatureimpact and temperature quick change reliability test.
Reference Standards 参考标准 |
||||
| ●GB/T2423.1-2008试验A、低温试验方法 | ||||
| ●GB/T2423.2-2008试验B、 高温试验方法 | ||||
| ●GB/T2423.22-2002温度变化试验方法 | ||||
| ●GJB150.3-1986、高温试验 | ||||
| ●GJB150.4-1986、低温试验 | ||||
| ●GJB150.5-1986、 温度冲击试验 | ||||
| ●GB/T2423.1-2008 Test A: Low Temperature Test Method | ||||
| ●GB/T2423.2-2008 Test B: High Temperature Test Method | ||||
| ●GB/T2423.22-2002 Test N: Temperature change Test Method | ||||
| ●GJB150.3-1 986 High Temperature Test | ||||
| ●GJB150.4- 1986 Low Temperature Test | ||||
| ●GJB150.5- 1986 Temperature Shock Test |
|
Technical Indicators 技术指标 |
||||||||||||||
|
型号 Model |
HY-KTS-41A |
HY-KTS-41B |
HY-KTS-41D |
HY-KTS-71A |
HY-KTS-71B |
HY-KTS-71D |
HY-KTS-110A |
HY-KTS-110B |
HY-KTS-110D |
HY-KTS- 301A |
HY-KTS -301B |
HY-KTS -301D |
||
|
试验箱温度范围 Temperature range |
+60~+200 |
+60~+200 |
+60~+200 |
+60~+200 |
||||||||||
|
-40~0℃ |
-55~0℃ |
-65~0℃ |
-40~0℃ |
-55~0℃ |
-65~0℃ |
-40~0℃ |
-55~0℃ |
-65~0℃ |
-40~0℃ |
-55~0℃ |
-65~0℃ |
|||
|
冷却方式 Cooling manner |
可选择风冷或者水冷 Wind cooling or water cooling |
|||||||||||||
|
温度恢复条件 Temper ature recovery condition |
高温曝露 High termperature exposure |
+150℃ 30min |
||||||||||||
|
常温曝露 Normal termperature exposure |
5 min |
|||||||||||||
|
低温曝露 Low termperature exposure |
-40℃ |
-55℃ |
-65℃ |
-40℃ |
-55℃ |
-65℃ |
-40℃ |
-55℃ |
-65℃ |
-40℃ |
-55℃ |
-65℃ |
||
|
30min |
30min |
30min |
30min |
30min |
30min |
30min |
30min |
30min |
30min |
30min |
30min |
|||
|
温度恢复时间 Temperature recovery time |
5min |
5min |
5min |
5min |
||||||||||
|
内部尺寸（mm) Internal size |
W |
240 |
410 |
650 |
970 |
|||||||||
|
H |
460 |
460 |
460 |
460 |
||||||||||
|
D |
370 |
370 |
370 |
670 |
||||||||||
|
外部尺寸（mm） 不含凸出部分 External size (excluding projecting portion) |
W |
1300 |
1300 |
1500 |
1500 |
1720 |
1720 |
2050 |
2050 |
|||||
|
H |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
||||||
|
D |
1700 |
1800 |
1700 |
1800 |
1800 |
1900 |
2100 |
2200 |
||||||
|
试样 Testing sample |
2.5KG |
5KG |
10KG |
24KG |
||||||||||
|
电源 Power |
Ac380±10% 50Hz 三相四线+保护地线 AC380V±10％( 50HZ three-phase and four-wire + protection ground wire) |
|||||||||||||
|
压缩空气 Compressed air |
0.4～0.7MPa |
|||||||||||||
|
水压 Water pressure |
0.2～0.5MPa |
|||||||||||||
